Botulinum toxin type A has been shown to reduce spasticity after stroke [1] [2]. However, it is often the decrease in joint range of motion which limits the ability to use the limb, rather than the presence of spasticity itself [3] . The most common rehabilitation intervention used to increase joint range is stretch. A systematic review of stretch showed that there was little effect (MD 2 degrees, 95% CI 2 to 6) of short term stretch after stroke across seven randomized trials [4]. However, there was a larger effect (MD 15 degrees, 95% CI 4 to 26) of long-term stretch in the lower limb after traumatic brain injury if it was applied continuously via casting in one randomized trial [4], with another randomized trial of casting after traumatic brain injury showing similar results in the upper limb (MD 22 degrees, 95% CI 13 to 31) [5].

Clinically, in the presence of spasticity, it is assumed that using botulinum toxin type A plus casting will increase range of motion more than casting used in isolation. Presumably this is because both impairments are being targeted–the contracture via casting and the spasticity via botulinum toxin type A. There is little evidence to support this hypothesis. Randomized trials showed no effect of adding botulinum toxin type A to casting after traumatic brain injury [6] (MD 2 degrees, 95% CI 9 to 13) or in children with cerebral palsy [7] (MD 5 degrees, 95% CI 4 to 13). Adding botulinum toxin type A to casting to reduce contracture has not been examined in a randomized trial after stroke. However, a single-group study [8] of botulinum toxin type A followed by three weeks of casting resulted in reduction in contracture of 7 degrees (95% CI 5 to 9) in people with chronic stroke and moderate to severe spasticity (Grade 3–4 on the modified Ashworth scale).

The aim of this study, therefore, was to investigate if the addition of botulinum toxin type A to casting is more effective than casting alone in increasing range of motion after stroke in people with moderate to severe spasticity.

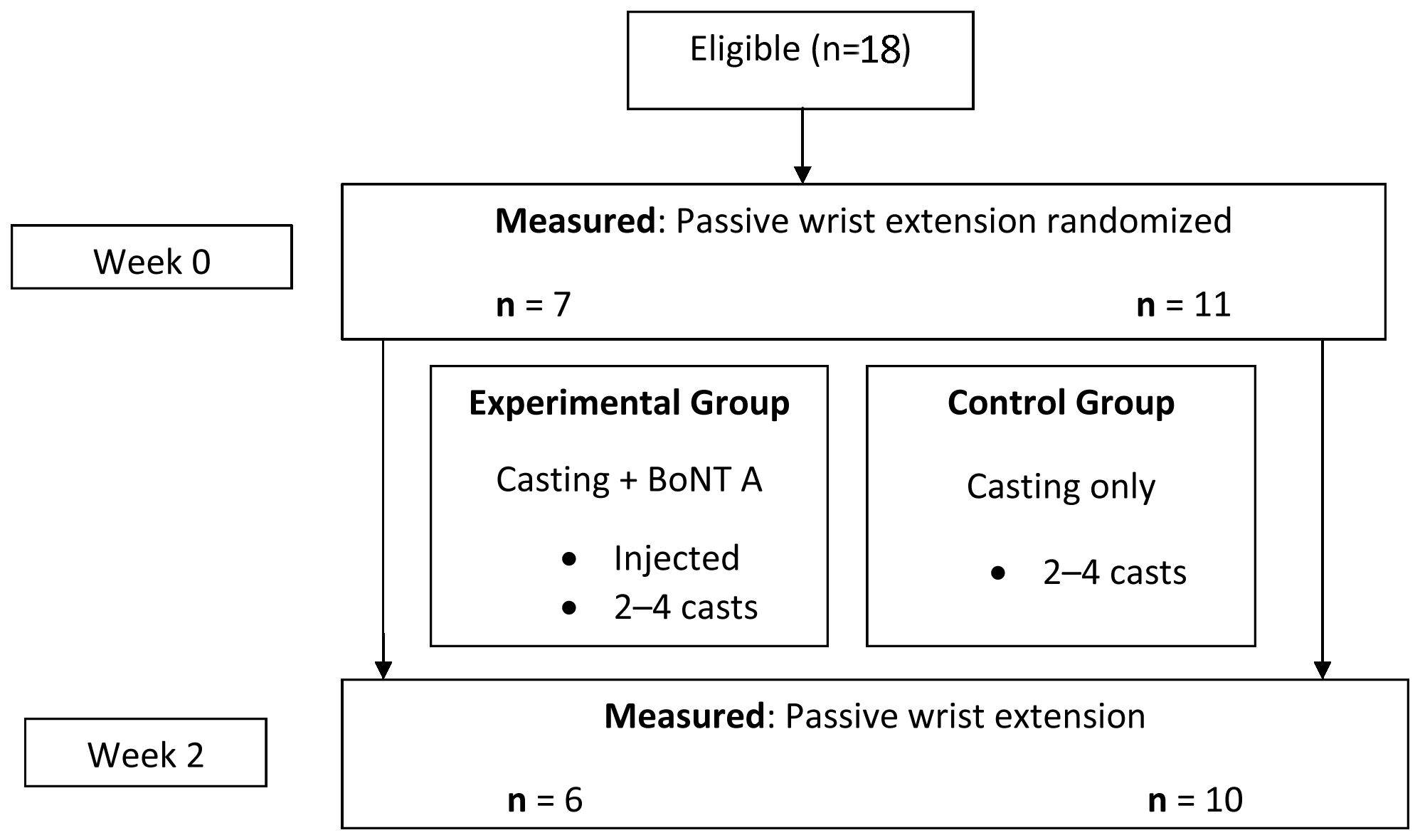

This study was part of a larger randomized trial which investigated the effect of botulinum toxin type A alone, therapy alone and therapy plus botulinum toxin type A in patients with spasticity as a result of a neurological condition [9]. A component of the therapy was two weeks of casting in order to increase range of motion. This study therefore investigated the effect of the addition of botulinum toxin type A to casting on contracture (Figure 1). Participants were recruited from people presenting to the spasticity clinic of a metropolitan hospital in Adelaide, Australia with spasticity as defined as a Tardieu scale [10] score = 2 out of 4. They were randomly allocated to the experimental group (two weeks of casting plus botulinum toxin type A) or the control group (two weeks of casting only). The allocation sequence was generated using a computerized random number generator by someone not involved in the study and concealed using consecutively numbered, sealed, opaque envelopes which were opened by the injecting physician following baseline assessment. Therapists who applied the casts were blind to whether participants had been injected. Outcomes were measured at baseline before randomization and injection (week 0) and then again at least one hour after cast removal (week 2) by a researcher blind to group allocation. Data entry and analyses for this study were also conducted blind to group allocation. La Trobe University and Flinders University Human Research Ethics Committees approved this study. All participants provided written, informed consent prior to data collection.

Patients were included if they were aged over 18 years, were diagnosed with a stroke (or stroke-like condition), and had sufficient cognitive ability (defined as a score of more than 23 on Mini Mental State Examination [11]) and English language to be able to participate. They were excluded if they had: an allergy to proposed injection agents, or had had a botulinum toxin type A injection in the previous five months. Participants were included in this specific study if they had a cast applied in maximum wrist extension.

The experimental group received botulinum toxin type A injections and then received two weeks of casting the wrist into maximum extension. The injection of BOTOX™ into their spastic muscle(s) was administered by a rehabilitation physician according to Australian practice recommendations [12][13]. The treating physician used goal setting with participants and their carers to identify areas of concern specific to their spastic upper limb movement, and muscle choice for injection was based on these goals and the distribution of upper limb spasticity. BOTOX™ was supplied to participants through the Australian Pharmaceutical Benefits Scheme (PBS) and the maximum dose of at any one time point was 400 units. The forearm and hand was placed in a series of synthetic casts for two weeks so that the spastic wrist flexors were in a stretched position; some participants wore casts that also included the elbow (positioned in extension) and/or their fingers and thumb (positioned in extension). The position of the limb in the cast was determined by the therapist and by the participant’s perception of a strong stretch’ [5]. Second and third casts were applied (approximately 5–6 days after application of the previous cast) to gradually increase the stretch on muscles. Participants were monitored for sensation, pain, circulation and skin breakdown; casts were modified or ceased in the presence of complications.

Passive wrist extension was measured using goniometry and reported in degrees. Participants sat at a table with the arm on a table. A measurer stabilized the forearm in pronation and passively extended the wrist in maximum extension to the limit of comfort. Another measurer placed a goniometer along the forearm and the hand, and measured wrist extension (where zero is the wrist in neutral). The procedure [14] was carried out by trained measurers who were registered physiotherapists and occupational therapists.

Measures of central tendency (mean or median) and measures of dispersion (SD, IQR) were used to present characteristics of the participants. The size of the effect was determined as the mean between-group difference (95% CI). Primary analysis was by intention-to-treat, where each participant’s data were analyzed in the group to which they were randomly assigned irrespective of intervention received or refused [15]. Missing data was replaced by the group means.

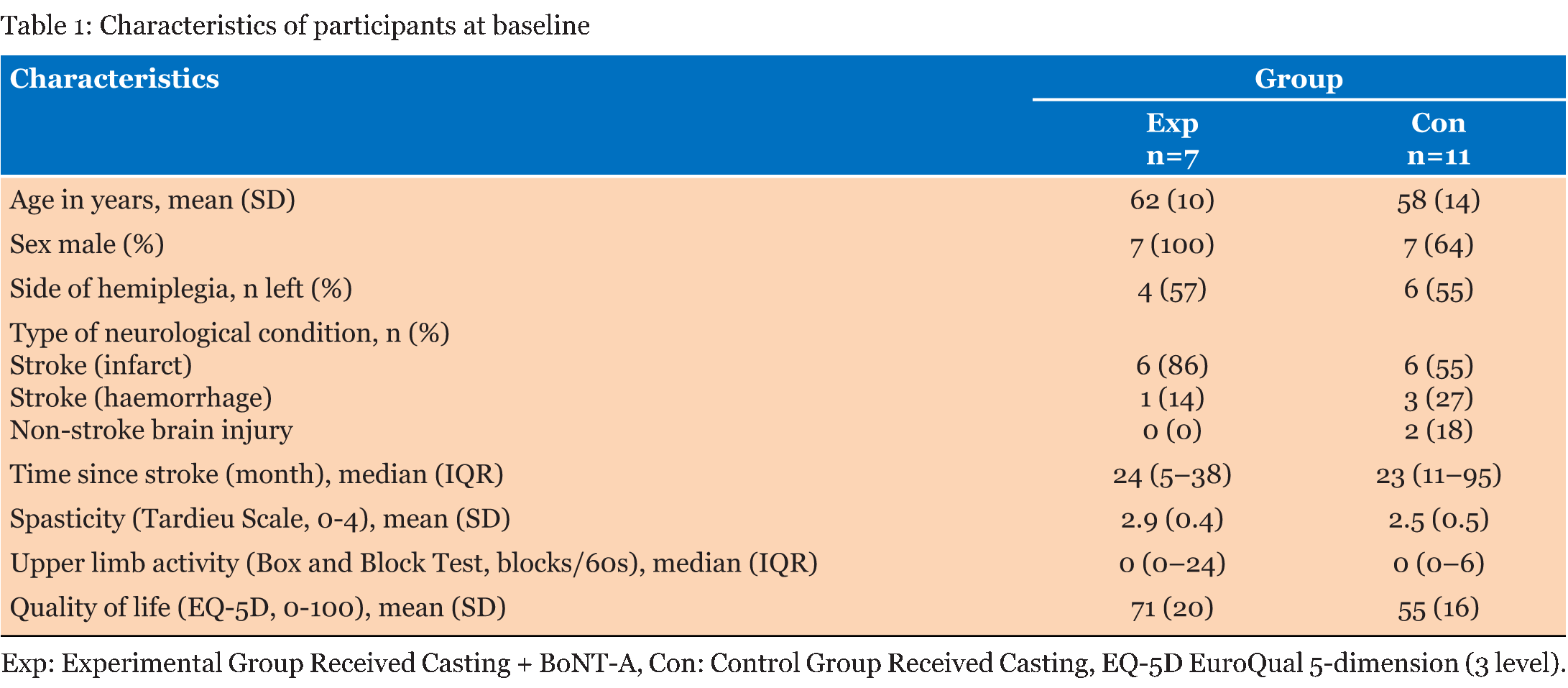

Eighteen participants from the original trial were eligible because they had casts applied to increase wrist extension and were included in this study. Seven participants had been randomized to the experimental group and 11 had been randomized to the control group. There were two participants lost to follow-up (Figure 1). The mean age of the participants was 60 years (SD 13) and 14 (78%) were males. Most had suffered a stroke (n = 17, 89%), two years previously. The control group was slightly younger, contained two participants with a non-stroke brain injury, had slightly worse upper limb activity and a lower quality of life (Table 1).

All participants received at least two casts over a two-week study period. The median number of casts per participants applied was three with one participant (5%) receiving four. The mean length of time that a cast was worn continuously was 5 days (SD 1); and the mean duration of casting was 16 days (SD 2). The most common types of cast were either a short-arm cast or a short-arm cast with a finger platform and dorsal cut-out. The other casts were long-arm casts (with and without a finger platform). Just under half of the participants (n = 8, 44%) had their type of cast changed over the study period, with the most common change being from a short arm cast to a short arm cast plus a finger platform. Minor adverse events (n = 20 events) including swelling, redness, skin breakdown/blister and sensory discomfort were noted, but none were serious enough to lead to early cast removal.

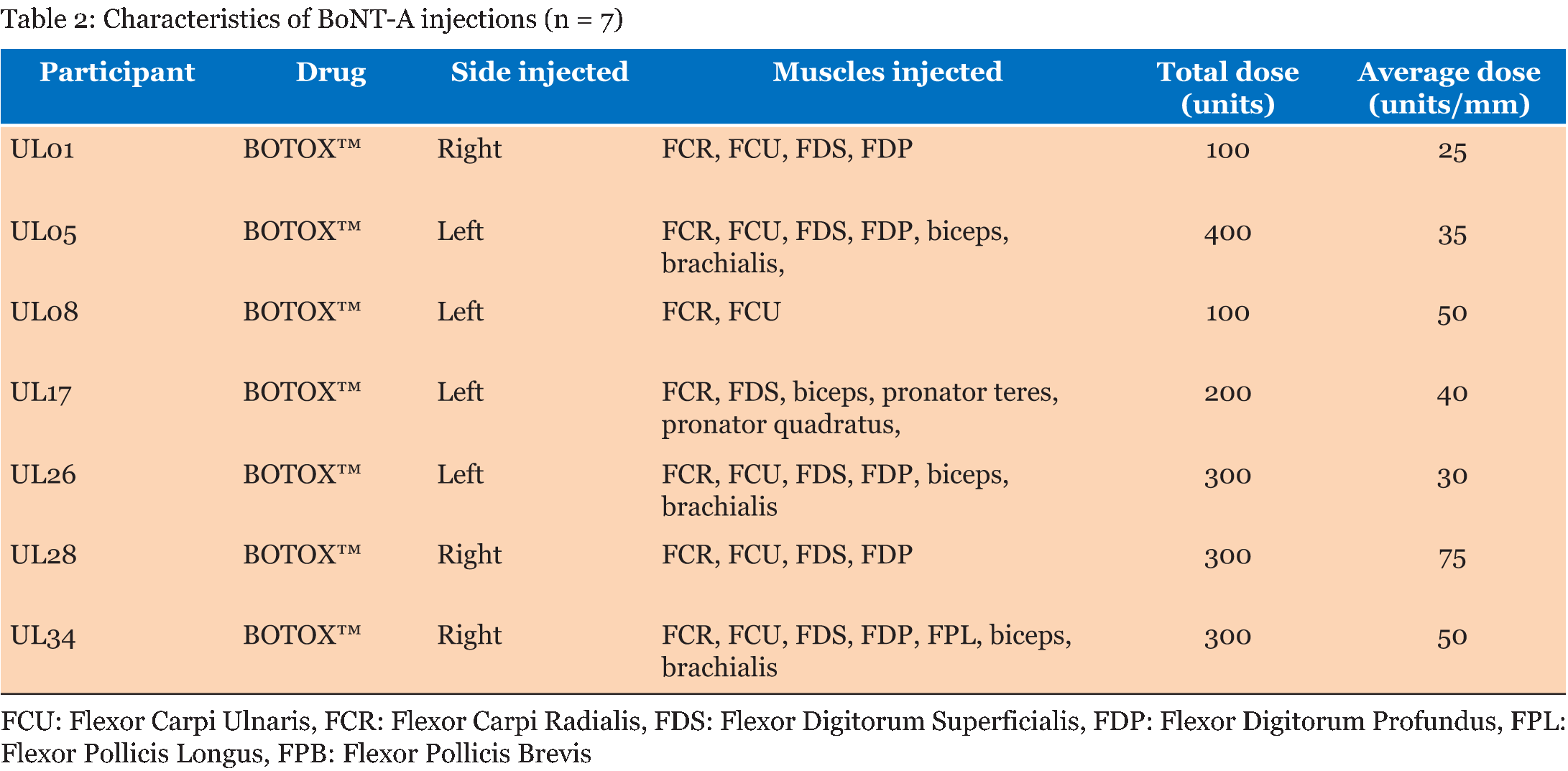

Experimental participants received botulinum toxin type A injections into muscles affected by spasticity. Most participant had injections into flexor carpi radialis and ulnaris as well as flexor digitorum superficialis and profundus, with a total dose ranging from 100–400 units (Table 2).

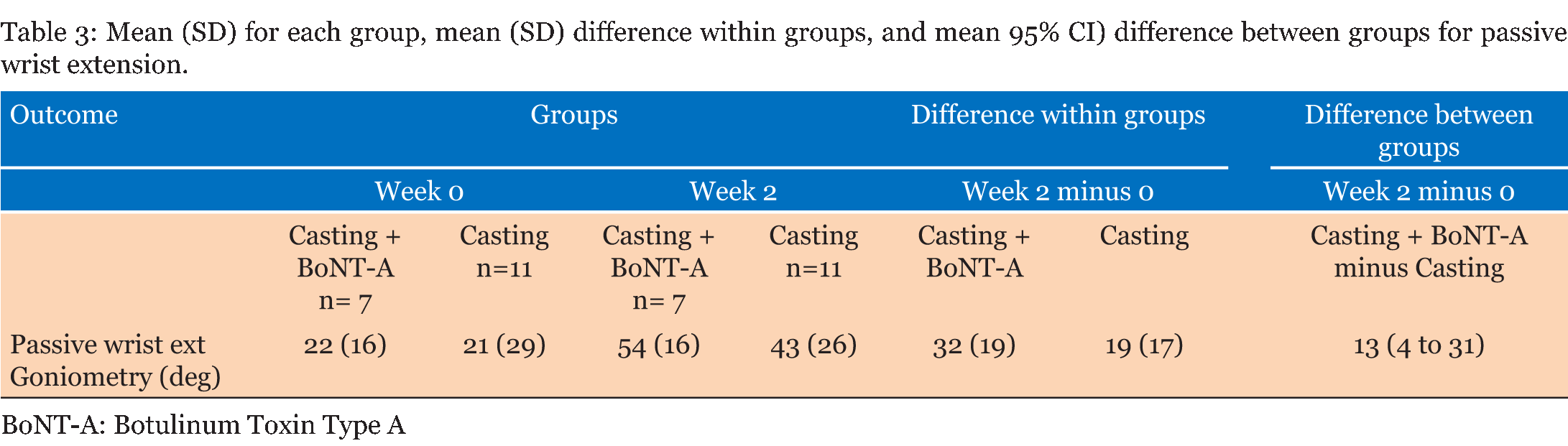

Group data are presented in (Table 3). Passive wrist extension improved over the two weeks from 22 degrees (SD 16) to 54 degrees (SD 16) in the experimental group, and from 21 degrees (SD 29) to 43 degrees (SD 26) in the control group. The experimental group increased passive wrist extension 13 degrees more than the control group which was not statistically significant (95% CI -4 to 31).
